RG-6/U Tri-shield Messenger Coaxial Cable

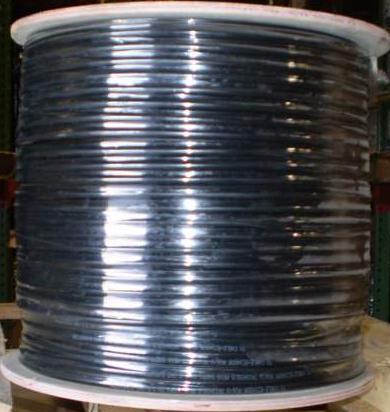

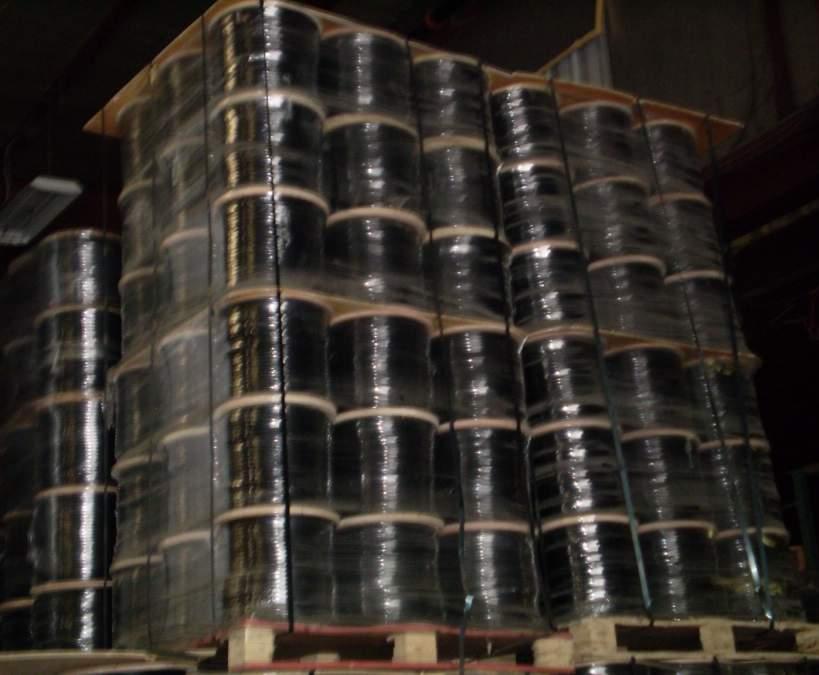

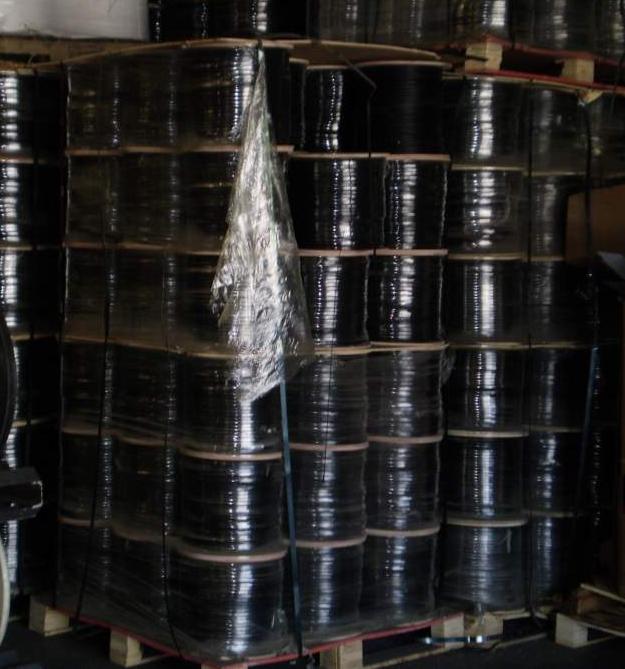

We have for sale 1,400,000 feet of Tri shield messenger cable, 1,000 feet reels Qty 1,400 reels

Construction Details
Center conductor: 18AWG Solid Bare Copper
Dielectric: Cellular Polyethylene.
Nominal Dielectric Core O.D: 0.180 in.
1st Shield: Coaxial Shielding Tape (100% Coverage)
2nd Shield: Aluminum Braid
3rd Shield: Aluminum/Polyester Tape (100% Coverage)
Messenger Material: 0.045 in. Solid Steel
Construction Type: Siamese
Jacket Material: Polyvinyl Chloride
Jacket Color: Black
Nominal Overall Cable Dimensions: Minor (over coax): 0.275 in.
Major: 0.435 in.
Surface Print: TV-CABLE ECUADOR RG6/U TRI-SHIELD
MESS SWEPT TO 3.0 GHZ + Sequential Meter
Marks

Applications This document establishes the specifications for a Tri-shield
RG 6/U Type 75 ohm coaxial cable with a 0.045” steel
messenger and a polyvinyl chloride jacket in a siamese
construction used for video display, point-of-sale terminals, Local
Area Network controls, and CATV broadcast applications swept to 3.0 GHz

Electricals
Capacitance: 16.2 pF/ft, nominal
Characteristic impedance: 75 ohms, nominal
Velocity of propagation: 84% nominal
Nominal attenuation dB per 100 feet:
1.46 dB @ 50 MHz
2.05 dB @ 100 MHz
2.83 dB @ 200 MHz
6.88 dB @ 1000 MHz
7.50 dB @ 1200 MHz
8.50 dB @ 1800 MHz
9.50 dB @ 2200 MHz
12.0 dB @ 3000 MHz

Technical Details
Temperature Rating
Operation: -20°C to 60°C

BL Part # F0106
